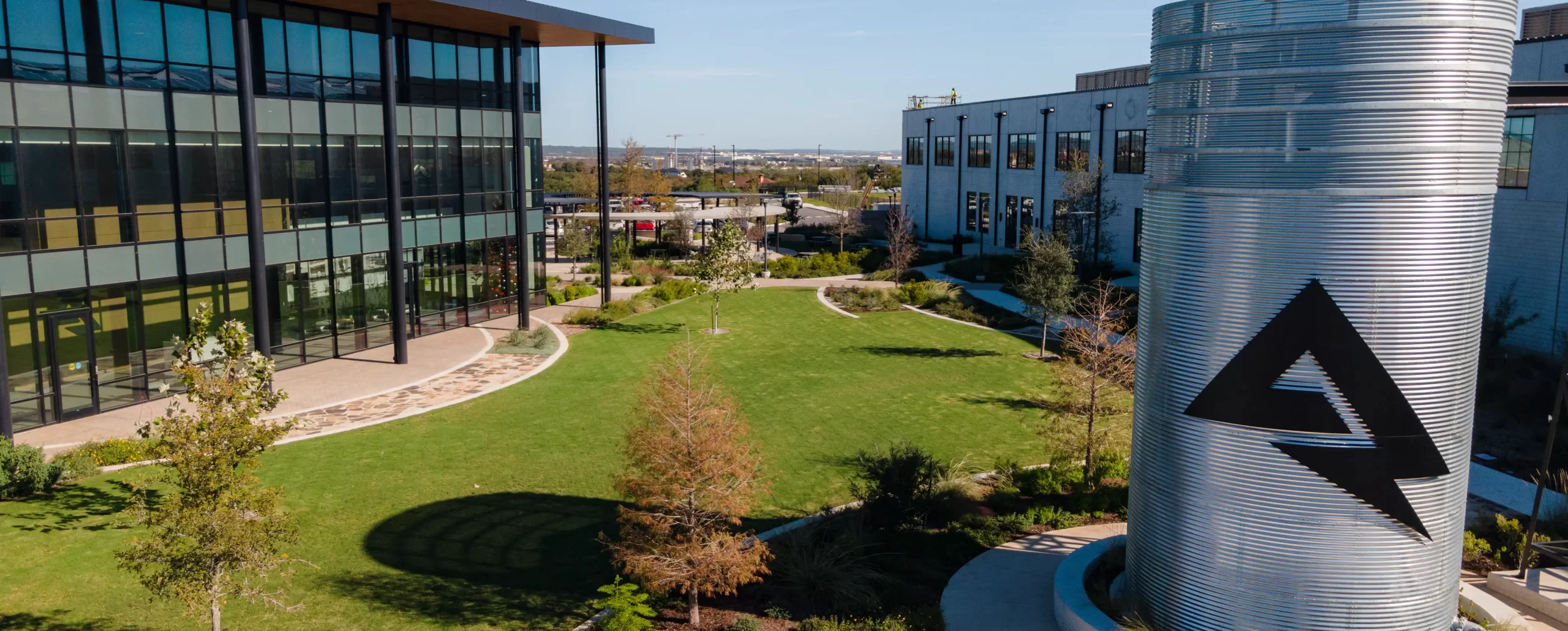

Some rainwater systems are designed to blend into the surroundings, while others are designed to make a statement. This custom rainwater tank for Alterman Electrical in San Antonio is a great example of a project that delivers a bold visual presence without sacrificing functionality.
At the center of the Alterman campus is a CorGal 1506 flat-roof rainwater harvesting tank positioned above a dry riverbed on a custom concrete foundation. The foundation concrete was stamped with a custom CorGal panel, which provides a cohesive and unique look at the base of the tank.
One of the most distinctive features of this project is the custom roof extension, which adds more than 8 feet of additional galvanized steel above the original tank structure. That added height introduced significant structural demands, necessitating support beams extending from the upper enclosure into the concrete foundation below.
This project also required a custom funnel system to work with the extended enclosure. An aqueduct-style conveyance system channels rainwater and AC condensate from a nearby rooftop into the tank, helping maximize water capture.
Projects like this highlight the range of design and engineering considerations that go into custom water systems. Working closely with Rialto Architecture Firm, whose vision helped shape the project’s distinctive appearance and seamless integration into the Alterman campus, we developed a system that balances architectural impact with long-term performance. From structural considerations and water capture strategies to site integration, every detail was designed to deliver reliability, functionality, and a bold visual statement.
If you’d like to learn more about this project or discuss a system of your own, reach out to us at Sales@specwater.com or call (512) 301-5632.
Project Spotlight: Delivering Sustainable Water Solutions for DFW Airport’s ECUP Development
Advancing Sustainability at One of the World’s Busiest Airports
SWS is proud to highlight our recent contribution to the Dallas Fort Worth International Airport (DFW) as part of its groundbreaking Electric Central Utility Plant (ECUP) initiative. The ECUP development is a cornerstone of DFW’s mission to achieve Net Zero Carbon emissions by 2030, modernizing the airport’s heating and cooling infrastructure while dramatically improving efficiency and reducing environmental impact.
Our Solution: Customer Engineered CorGal Steel Tank
As a trusted partner in sustainable water systems, SWS collaborated closely with Water Storage Tanks, Inc. to design and deliver a CorGal 1509 Corrugated Rainwater Harvesting Tank customized with a flat roof to meet height restrictions. Powered by a duplex pump system, this tank collects rooftop rainwater and channels it into the ECUP facility, where it is reused within the airport’s heating and cooling processes.
Key Tank Features
Size & Scale: Standing at an impressive 32 feet tall, this tank provides substantial storage capacity while maintaining the sleek, modern profile CorGal systems are known for.
Duplex Pump: Ensures reliable, continuous delivery of captured rainwater into the ECUP system.
Optimized for Limited Space: Site constraints were one of the most challenging aspects of this installation. Working alongside Water Storage Tanks, Inc., SWS engineered a custom configuration that maximized storage within strict spatial limitations—without compromising aesthetics or performance.
Despite the tight installation footprint, our crew successfully stood the tank and pumps in under two weeks.
Supporting DFW’s Path to a Greener Future
Though the ECUP development is still underway, the rainwater harvesting system installed by SWS already plays a critical role in supporting DFW’s sustainability goals by:
Reducing potable water consumption
Lowering operational emissions
Improving long‑term energy resilience across the airport campus
This tank is more than an installation; it’s part of a transformational step toward a more efficient, environmentally responsible airport infrastructure.
Let SWS Build the Right Water Solution for You
Every project has unique challenges. At SWS, we bring the expertise, engineering capability, and best‑in‑class products to deliver water solutions tailored to your exact needs.
Duplex Pump SystemView of side tank and cooling vents
Want to learn more about this project or explore how SWS can support your next water system?
Fill out the form below to connect with our experts today.
This CorGal model 1204 WT CHR tank and system supplies 12,000 gallons of water to be used for human consumption. The Onera project consists of a corrugated steel tank, Duplex TCEQ Pump System with Goulds 10HM06 203V, 3-Phase Power 5.5 HP on Variable Speed Drive. The system includes a Stenner Chlorinator System and two (2) Amtrol WX-455C 370 gallon pressure tanks.
The Texas Commission on Environment Quality (TCEQ) defines these systems as water supplies to be used for human consumption that serve at least 15 service connections or at least 25 individuals for at least 60 days out of the year.
Fire tanks are essential for development in locations that do not have reliable water sources. While smaller than most, this 0903 WT CHR CorGal fire tank serves a small office in Travis County. All fire tanks are engineered and designed the NFPA 22 and are built to the specifications required by the local authority having jurisdiction.
Rainwater harvesting and breweries go hand in hand in Austin, Texas. The CorGal 0802-WT-CHR will allow for 2,500 gallons of water storage and adds to the beautiful mural in the back.
Education is our future. Rainwater harvesting is the best way to teach children about this valuable resource. The CorGal 1205-WT-CHR will provide 15,000 gallons of rainwater for the student garden.

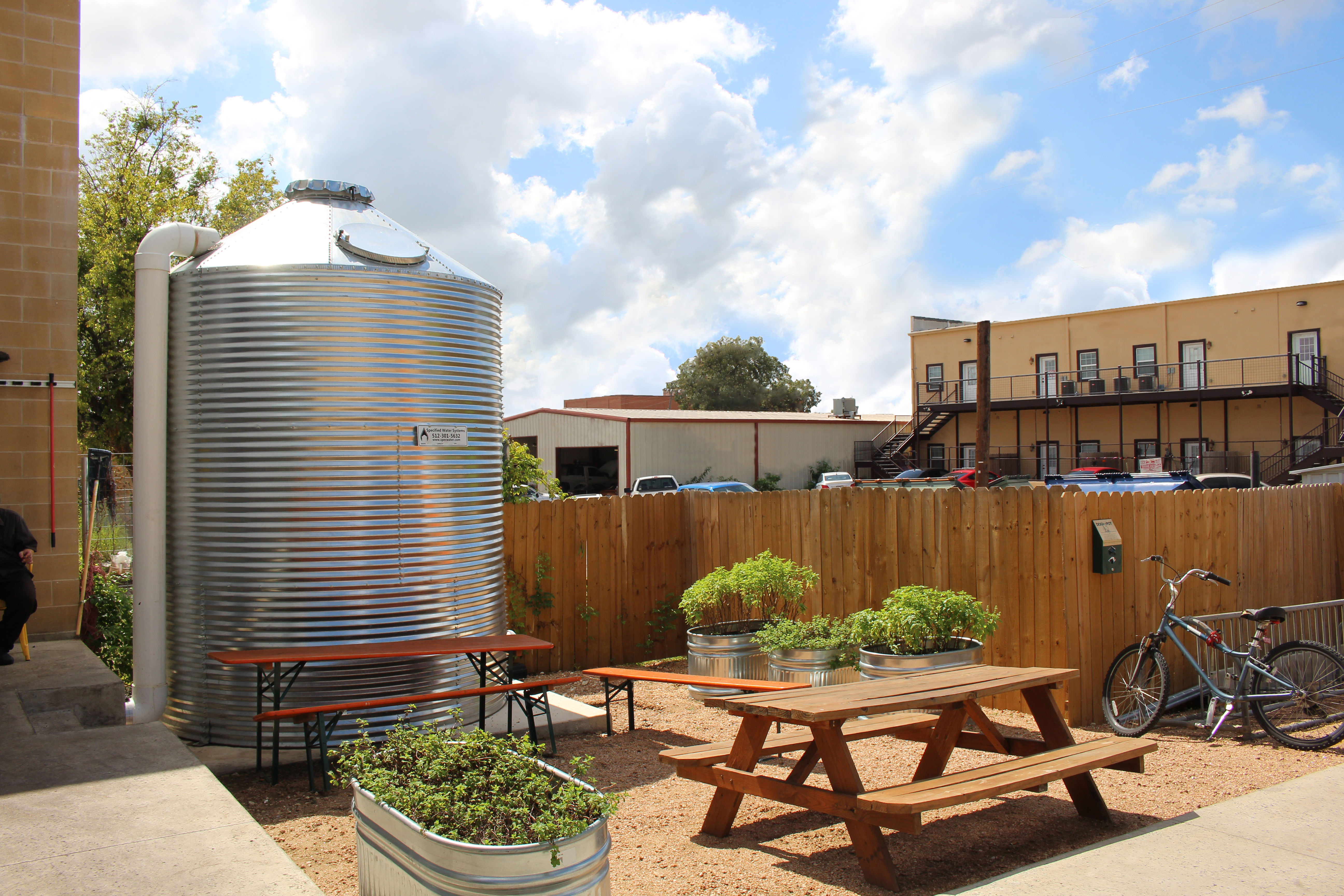

Have you been to AquaBrew yet? If you haven’t been, be sure to put it on your list for excellent brew, music and food. We were fortunate to work with the owner, Carlos Russo, to provide a 5,000 gallon CorGal water tank that assisted with the stormwater plan for his site and also serves to irrigate the plants in the beer garden area.

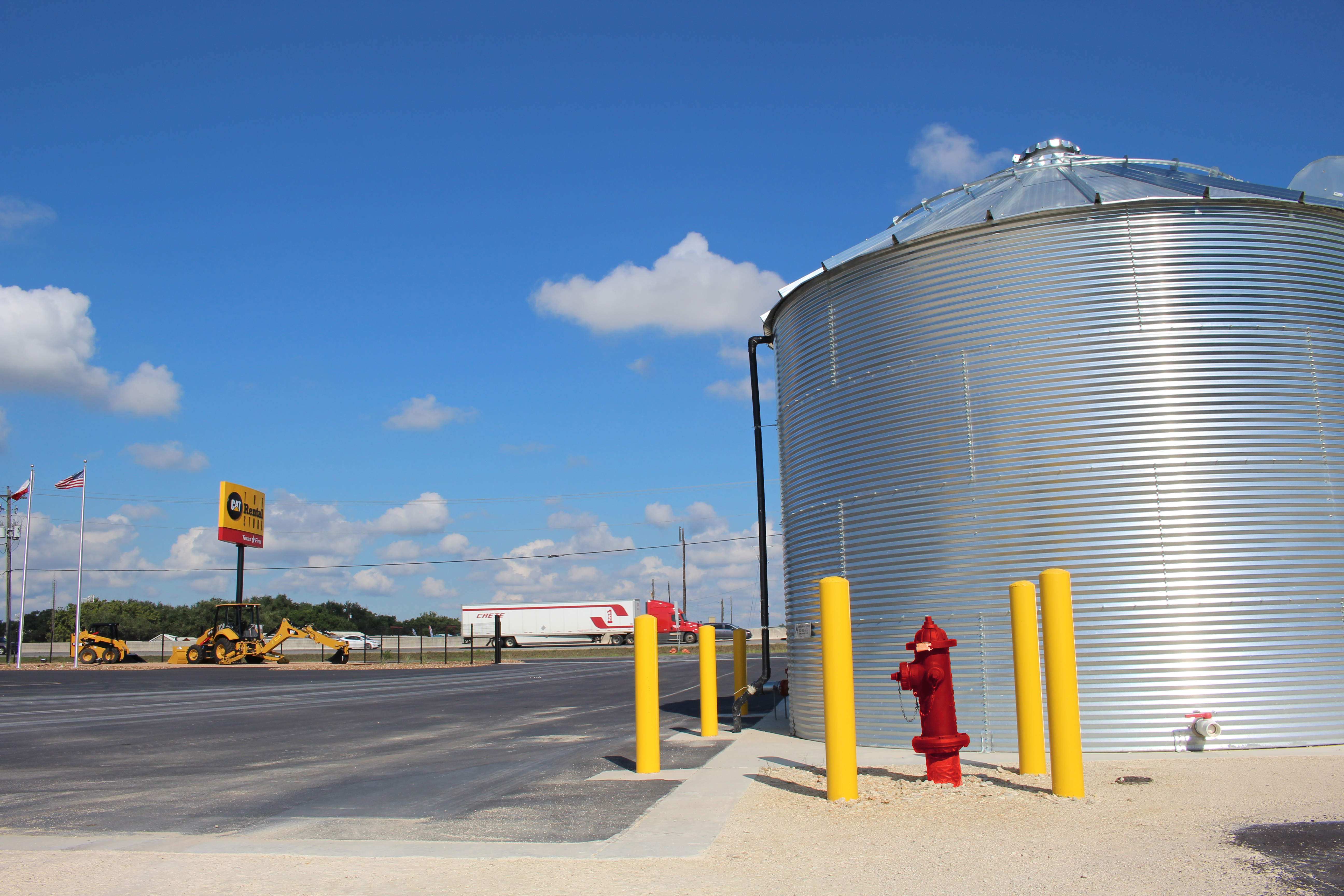

Big buildings require big fire protection. We supplied a 36,000 gallon tank to a leader in the rental industry, Texas First Rentals. Without this large tank TFR would not have a had a cost effective means for fire protection that met NFPA 22 and the local fire marshal’s requirements.
The Austin Business Journal recently wrote an article about the new YETI retail store. We are happy to have been part of this exciting project. The custom TimberTank that is featured along Barton Springs road turned out beautiful. Contact us for your water storage needs. We specialize in matching architectural and engineered designs.

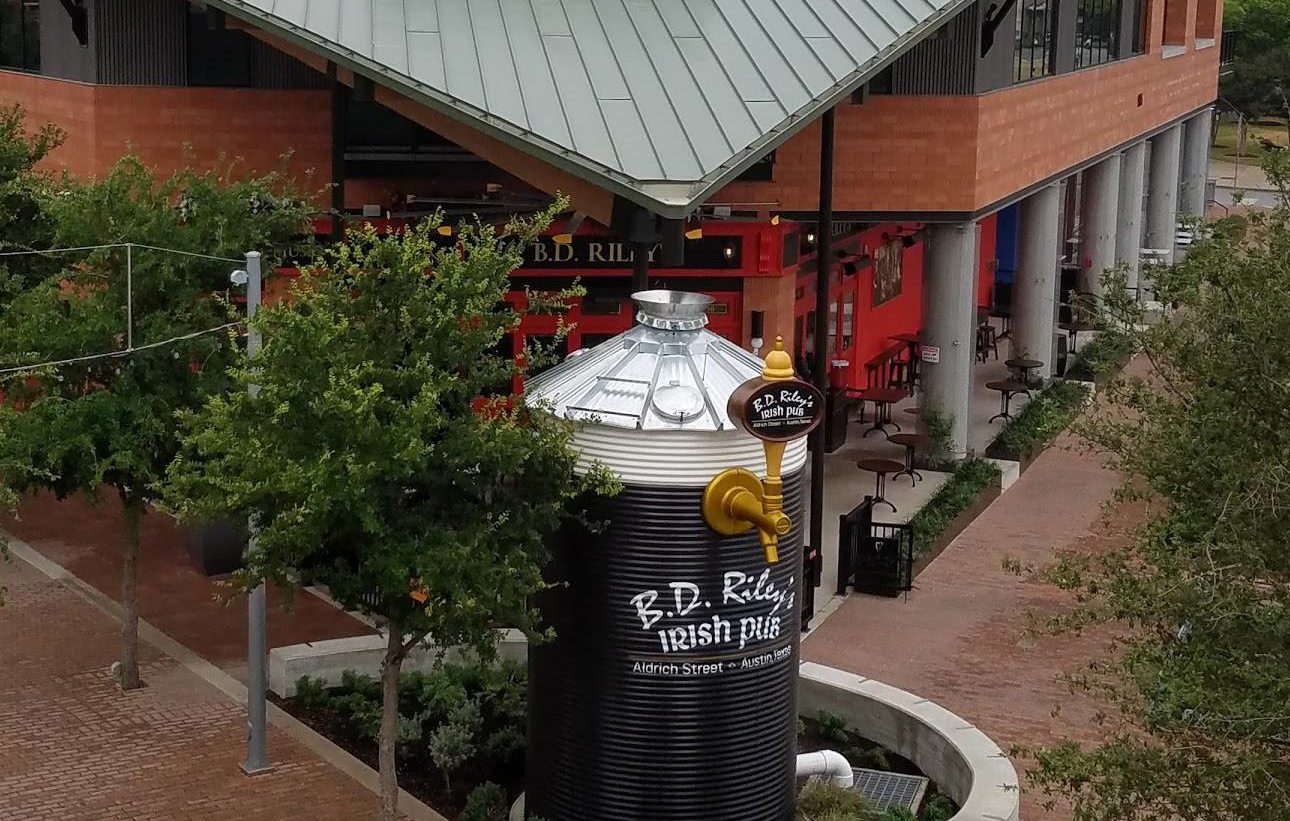

BD Riley’s designed this custom “beer keg” to serve as their stormwater solution at their Mueller site while highlighting their awesome brand. This CorGal tank accommodates 6700 gallons or 42,880 pints of Guinness beer. CorGal® water tanks can serve a variety of functions which were demonstrated on this project. Cheers!
